SS316 SS304 Wafer Type Dual Plate Check Valve PN16,DN100-200

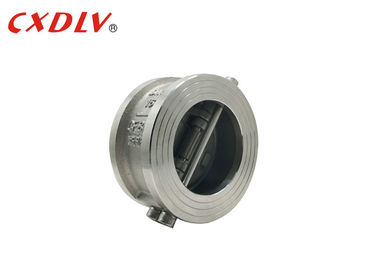

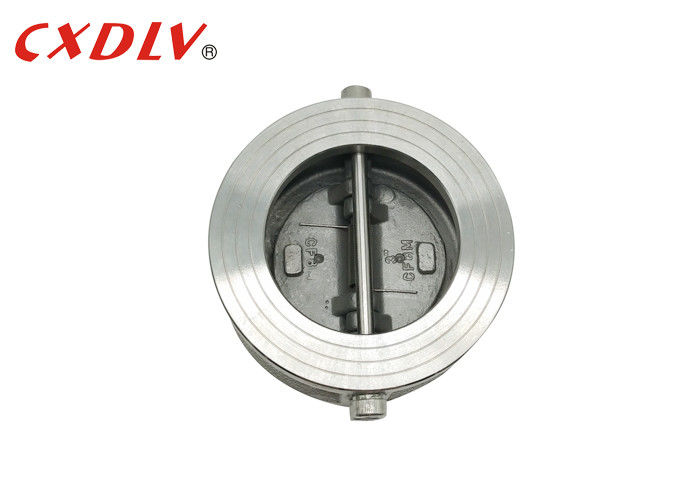

SS316 SS304 Wafer Type Dual Plate Check Valve PN16,DN100-200

MOQ: 1pc
Price: FOBUS$27~US$875/pc
Standard Packaging: Suitable Plywood Cases according to different valves' structure
Delivery Period: 5~60 work days
Payment Method: T/T, L/C, , D/A, D/P, Western Union, MoneyGram
Supply Capacity: 1000pcs per Month
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE,ISO,TS
Model Number
H76
Body:
CF8,CF8M,WCB...
Disc:
SS304,SS316
Seat:
Metal Seat
Port Size:
DN50~DN1200
Connection:
Wafer
Standard:
ANSI,ASME,DIN, JIS,GB
Pressure:
PN10~PN40
Application:
Water,Oil,Gas...
Highlight:

dual plate wafer check valve

,

double plate check valve

Product Description

Stainless Steel Dual Plate Check Valve SS316 SS304 Wafer Type

               (PN16) Dual Plate Check Valve Dimension



(Unit:mm)

DN L D
PN16 PN25  PN16 PN25
100 73 73 162 168
125 86 86 192 194
150 98 98 218 224
200 127 12 273 284



                  Check Valve Overview

Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a pipe system.Often applied on the discharge side of pumps,check valves prevent the system from draining if the pump stops and protects against backflow, which could harm the pump and/or other equipment.

Dual Plate Check Valve  is used for pure pipeline and industrial, environmental,water treatment, high-rise building water supply and drainage pipelines to prevent reverse flow of medium.The check valve adopts a clip type, the disc has two semicircles,and the sealing surface can be a body wear welding wear material or a lining rubber, and the utility model has wide application range and reliable sealing.

       Features of Dual Plate Check Valve:

  • Short face-to face dimension,which is only 1/4~1/8 of traditional flanged check valve
  • Small volume and light weight,its weight is only 1/2~1/20 of flanged check valve
  • Quickly closed disc,low water hammer pressure
  • It can be used on horizontal and vertical pipe with convenient installation
  • Smooth flow channel an low fluid resistance
  • Agile movement and good sealing performance
  • Short disc travel and low shut off impace force
  • The integral structure is simple and compact with beautiful appearance
  • Long service life and high reliability

                  Packing&Delivery

Packing Details:We choose suitable plywood cases according to different valves and arrange skilled workers to pack in case of bruise.Long term cooperated forwarder will book space,clear customs and transport for us without delay.There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details:7~40days bosed on you order quantity after deposite.



                   FAQ

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
