| MOQ: | 1 Piece |
| Price: | Negotiation |
| Delivery Period: | 7-30 days |
| Payment Method: | L/C, T/T, Western Union |

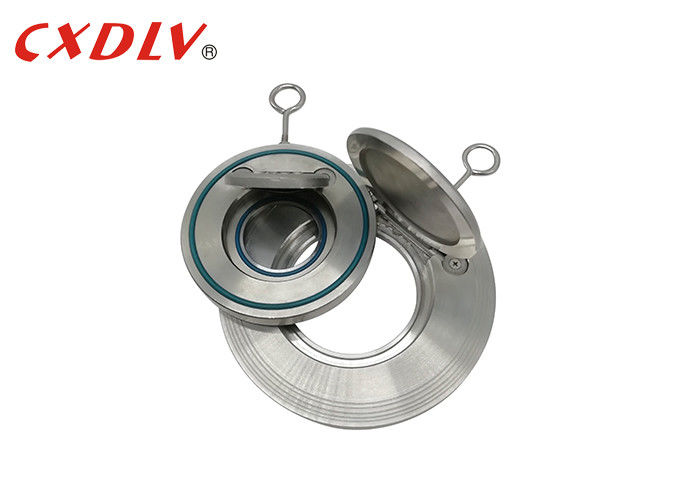

DN80 Single Door Wafer Type Swing Check Valve CF8 PN16
Specifications
Applicable Standards:
-FACE TO FACE: API6D/AMSE B16.10/JB/T8937
-FLANGE DIMENSION: ANSI/DIN/JIS/JB
Size Range:
- DN40~DN600
Pressure Rating:
- ANSI125~ANSI600
Temperature Range:
- -29°C~180°C
Application
The wafer check valve is made of carbon steel and stainless steel. It is manufactured in accordance with JB and API standards. It is suitable for large diameter applications. The pressure is 1.6-4.0mpa (150LB-600LB), the diameter is DN50-1500mm, and the medium is water and oil. Chemical, petrochemical, petroleum, electric power, liquefied gas, water supply and drainage, municipal, urban construction and other fields of liquids such as acid and alkali are used as an automatic valve device to prevent fluid backflow.
| DN | B | A(ANSI125) | L |
| 40 | 23 | 87 | 19 |
| 50 | 30 | 104 | 19 |
| 65 | 41 | 124 | 19 |
| 80 | 54 | 136 | 19 |
| 100 | 71 | 174 | 19 |
| 125 | 92 | 197 | 19 |
| 150 | 112 | 222 | 19 |
| 200 | 155 | 279 | 28 |
| 250 | 201 | 339 | 28 |
| 300 | 240 | 409 | 38 |
| 350 | 270 | 450 | 44 |
| 400 | 311 | 514 | 48 |
| 450 | 360 | 549 | 58 |
| 500 | 410 | 606 | 64 |
| 600 | 490 | 717 | 68 |
Feature
Why choose us?
Wenzhou Xidelong Valve Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of valve , with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching the Middle East, Europe,Asia.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001 and PED.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer for more than 16 years..
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the free sample excluding the courier charge.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
|
|
